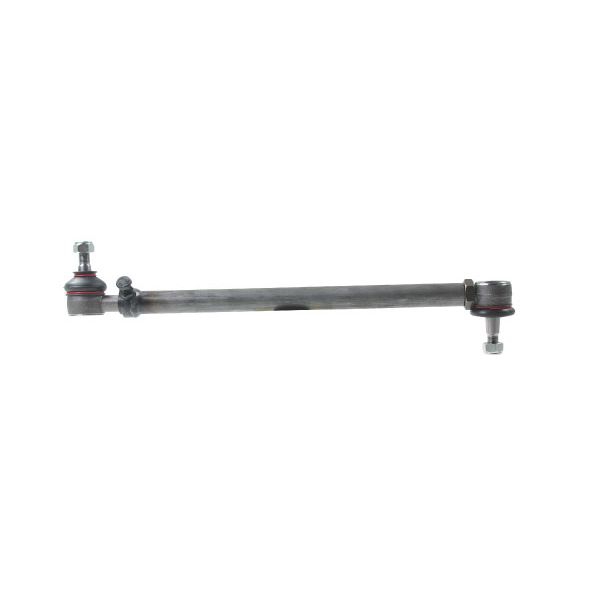

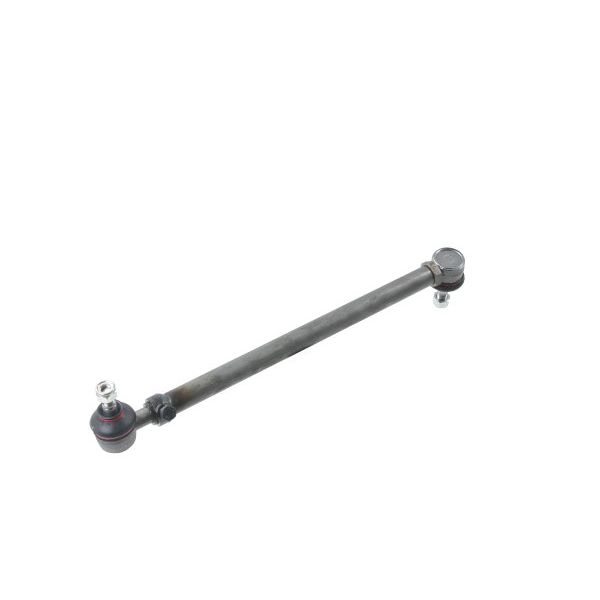

Drążek kierowniczy poprzeczny SHP010KR
Informacje
| Jednostka | Sztuka |
| D1 (mm) | 15,5 |
| D2 (mm) | 17,95 |
| E (mm) | 22,5 |
| F (mm) | M14 x 1,5 |
| A (mm) | 476 / 731 |
| B (mm) | 28 |
| C (mm) | 7/8 x 16 R |
| C1 (mm) | 20,5 |
Pasuje do
| Case IH C90, Case IH 3230, Case IH 454, Case IH 484, Case IH 585, Case IH 885, Case IH CX50, Case IH CX90, Case IH 3220, Case IH 785, Case IH CX100, Case IH CX70, Case IH CX80, Case IH 4220, Case IH 4230, Case IH 4240, Case IH 574, Case IH 584, Case IH 485, Case IH 685, Case IH C80, Case IH CX60, Case IH 3210, Case IH 4210, Case IH 474, Case IH 674 |
