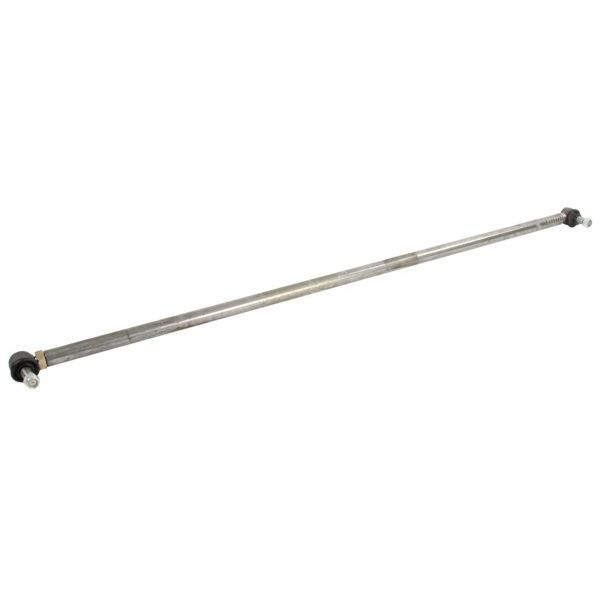

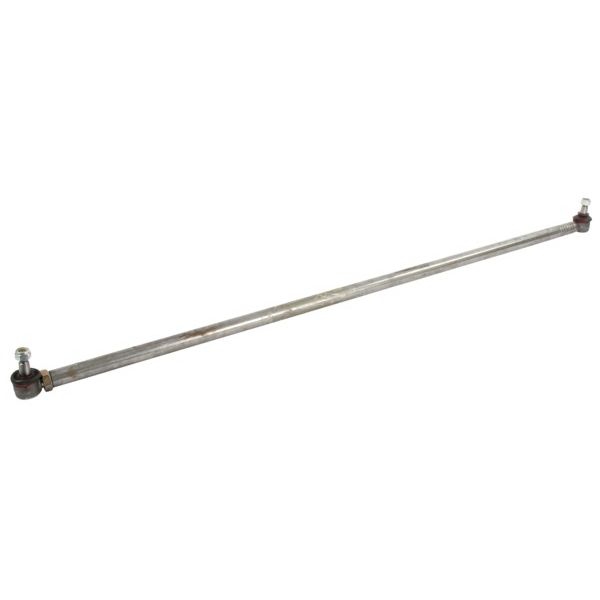

Drążek kierown. poprzeczny SHP099KR
Informacje
| Oryginalny numer | 5142233 |
| Pozycja | Fig.M 1,7 |
| Jednostka | Sztuka |
| D1 (mm) | 19,8 |
| D2 (mm) | 22 |
| E (mm) | 22,4 |
| F (mm) | M18 x 1,5 |
| A (mm) | 1515 |
| B (mm) | 34 |
| C (mm) | M24 x 1,5 R |
Pasuje do
| Case IH JX90, Case IH JX 90 Maxxima, New Holland TD 5050, New Holland TD5.105, New Holland TD5.115, New Holland TD5.75, New Holland TD5.85, New Holland TD5.95, New Holland TD 85D, New Holland TD 90D, New Holland TD 95D Plus, Case IH JX 85 Maxxima, Case IH JX 95 Maxxima, New Holland TD 75D, Case IH JX95, Case IH JX 80 Maxxima, New Holland TD 80D Plus, New Holland TD 90D Plus, New Holland TD 95D, Case IH JX80, New Holland TD 5040, New Holland TD5.65, New Holland TD 80D |
